John Deere 5303 and 5403 Indian Tractors (PIN Prefix: PY) Technical Manual TM8208

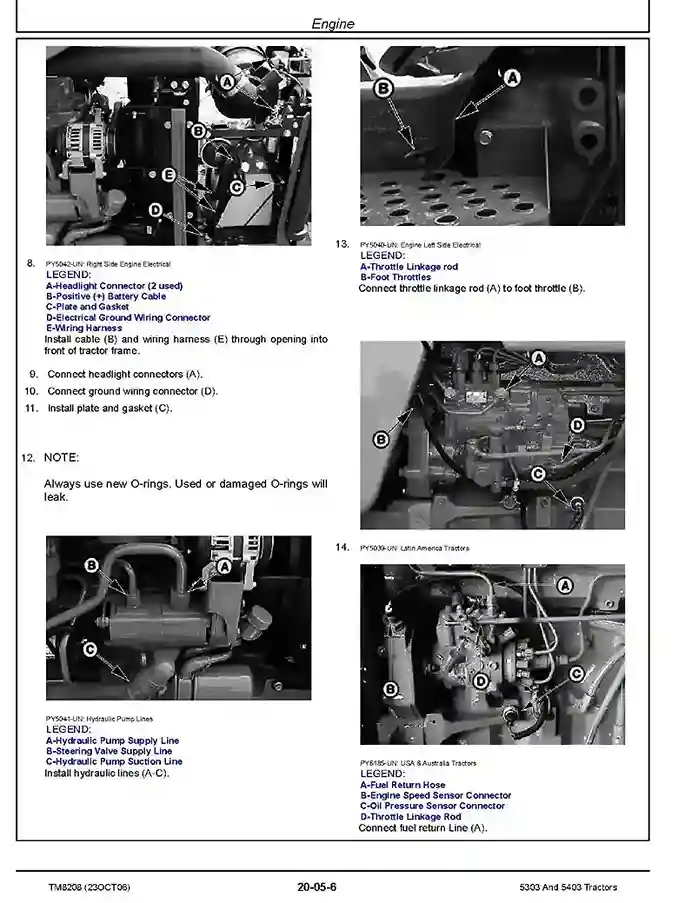

The John Deere 5303 and 5403 Indian Tractors (PIN Prefix: PY) Technical Manual provides detailed technical information covering engine, fuel and air, electrical, power train, steering and brake, hydraulic, miscellaneous, and operator’s station systems. It also includes operational checkout procedures, system operation, diagnosis, tests and adjustments, wiring schematics, hydraulic testing, hydraulic schematics, and CollarShift transmission information.
Specifications: SM
- Brand: John Deere 5000 Series Tractors
- Type of Document: Technical Manual
- Type of Equipment: Tractor
- Region: India
- Model: 5303, 5403
- Middle Tractors 5000 Series PIN: PY000000
- Manual Number: TM8208
- Language: English
- Format: PDF
Details:
Table of Contents
Introduction
- Foreword
General Information
- Safety
- General Specifications
- Fuel and Lubricants
- Serial Number Locations
- Features and Accessories
Engine Repair
- Engine
- Cylinder Head and valves
- Cyl. Block, Liners, Pistons & Rods
- Crankshaft, Main Bearings and Flywheel
- Camshaft and Timing Gear Train
- Lubrication System
- Cooling System
Fuel and Air Repair
- Fuel System
- Air Intake and Exhuast System
- Speed Control Linkage
Electrical Repair
- Battery, Starter and Alternator
- Electrical System Components
- Wiring Harness
Power Train Repair
- Clutch Housing
- Clutch Assembly- CollarShift Transmissions
- Transmission
- Rear PTO Drive Shaft
- Differential
- Final Drives
Steering and Brake Repair
- Steering Repair
- Brake Repair
Hydraulic Repair
- Hydraulic Pump and Filter
- MITA Rockshaft
- JD Rockshaft
- Selective Control Valve (SCV)
Miscellaneous Repair
- Front Axle
- Wheels
- 3-Point Hitch
Operator’s Station Repair
- Seat and Support
- Roll-Gard
- Operator Platform
- Fenders
Operational Checkout Procedures
- Operational Checkout Procedures
Engine Operation, Tests and Adjustments
- Component Location
- Theory of Operation
- Diagnosis, Tests and Adjustments
Fuel/Air Operation, Test and Adjustments
- Component Location
- Theory of Operation
- Diagnosis, Tests and Adjustments
Electrical System Operation, Tests and Adjustments
- Component Location
- Theory of Operation
- Diagnosis, Test and Adjust
- Wiring Schematics
Power Train Operation, Tests and Adjustments
- Component Location-CollarShift Transmission
- Theory of Operation-CollarShift Transmission
- Diagnosis, Tests, and Adjustments-CS Transmission
Steering and Brake Operation, Tests and Adjustments
- Component Location
- Theory of Operation
- Diagnosis, Tests and Adjustments
Hydraulic System Operation, Tests and Adjustments
- Component Location
- Theory of Operation
- Diagnosis
- Hydraulic Tests – Without SCV
- Hydraulic Tests-With SCV
- Hydraulic Tests – All
- Adjustments – MITA Rockshaft
- Adjustments – JD Rockshaft
- Hydraulic Schematics
