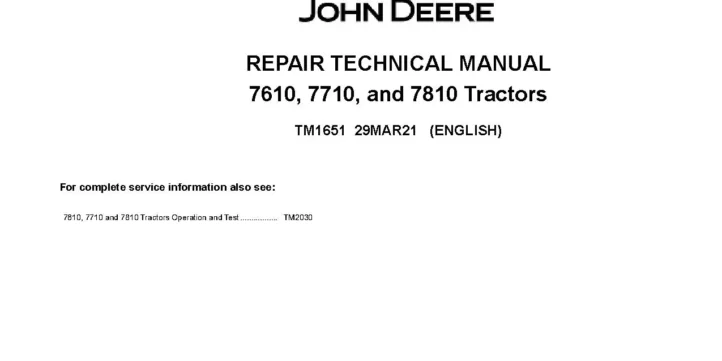

John Deere 7610 7710 7810 Tractors Repair Manual TM1651
The John Deere 7610 7710 7810 Tractors Repair Manual provides detailed repair information for the 7610, 7710, and 7810 tractor models. It covers general information, engine repair, fuel and cooling systems, electrical systems, Power Shift transmission, AutoPowr/IVT transmission, PowrQuad transmission, drive systems, steering and brakes, hydraulics, miscellaneous components, operator station, and dealer-fabricated tools. The manual includes information on transmission controls and components, MFWD and suspended MFWD axles, differentials, final drives, PTO systems, hydraulic pumps and valves, selective control valves, hitch systems, steering and brakes, trailer brakes, HVAC and air conditioning, seats, ROPS, and cab components.
Specifications: SM
- Brand: John Deere 7000 Series Tractors
- Type of Document: Repair Manual
- Type of Equipment: Tractor
- Model: 7610, 7710, 7810
- Manual Number: TM1651
- Language: English
- Format: PDF
Details:
Table of Contents
Introduction
- Foreword
- Notice To The Dealer
- Dealer Predelivery Information Form
- Quick Reference Specifications
General Information
- Safety
- General Information
Engine

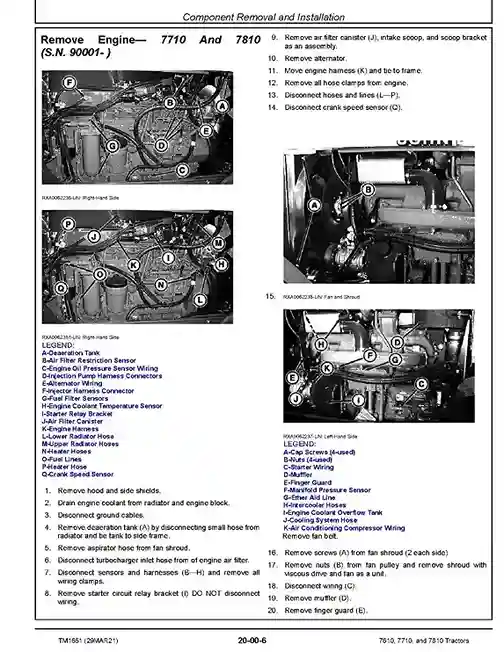

- Component Removal and Installation
- Engine Repair
Fuel and Cooling Systems
- Controls
- Diesel Fuel System
- Air Intake System
- Engine Cooling System
- Air Conditioning Condenser and Coolers-7610, 7710 and 7810 (S.N. -90000)
- Air Conditioning Condenser and Coolers-7710 and 7810 (S.N. 90001- )
Electrical
- Connectors
- Wiring Harness Routings
- Charging Circuit
- Starting Circuit
- Solenoids And Switches
- Monitoring System
- Auxiliary Lighting And Electrical Components
- Convenience And Accessory Components
Power Shift Transmission
- Component Removal and Installation
- Controls
- Transmission
- Reduction Gearbox
AutoPowr/IVT Transmission
- Component Removal
- Controls
- Front Pump/Control Valve Assembly
- Transmission Front Housing
- Hydrostatic Module
- Shift Valve Assembly
- Transmission Rear Housing
- Differential Input Assembly
POWRQUADPOWRQUAD is a trademark of Deere & Company Transmission
- Component Removal And Installation
- Control Linkages
- Transmission
- Creeper Transmission
- Range Box
Drive Systems
- Component Removal And Installation
- Controls
- MFWD Clutch
- MFWD Axle
- Suspended MFWD Axle Components
- Rear Differential
- Final Drive
- Rear PTO
- Drivelines
- Hydraulic Pump Drive
- Front PTO
Steering And Brakes
- Steering Column
- Hydrostatic Steering
- Steering Cylinders
- Brake Valve
- Brake Components
- Trailer Brakes
Hydraulics
- Component Removal And Installation
- Hydraulic System Repair
- Hydraulic Pump And Charge Pump
- Hydraulic System Valves
- Selective Control Valves And Couplers
- Hitch
- Bleed Hydraulic System
Miscellaneous
- Component Removal And Installation
- Front Axle
- Hood
- Wagon And Pick-Up Hitch
Operator Station
- Component Removal And Installation
- HVAC
- Air Conditioning System
- Seat
- ROPS and Cab
Dealer Fabricated Tools
- Fabricated Tools
