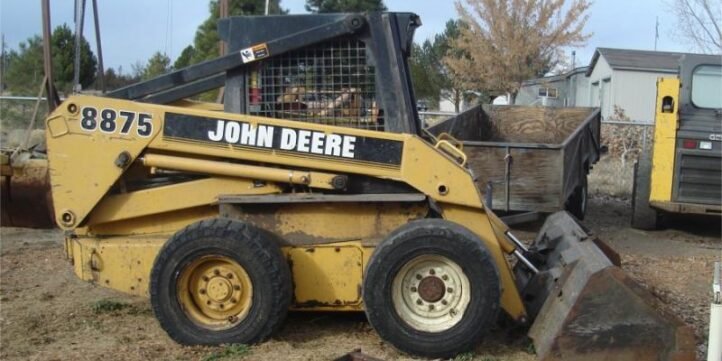

John Deere 8875 Skid Steer Loaders Technical Manual (TM1566)
- Type Of Document: Technical Manual
- John Deere
- Emission Standards: Tier 0
- Type of equipment: Skid Steer Loader
- Type: Manual Controls
- Model: 8875
It is Complete Technical Service Repair Manual for John Deere Skid Steer Loader.
Original John Deere Service Repair for Tractors, Dozers, Combines, Excavators, Mowers contains images, circuit diagrams and instructions to help you to operate, maintenance and repair your truck. All Manuals Printable, without restrictions, contains Searchable Text
Table of Contents: 8875 Skid-Steer Loader
- Specs and Information
- Vehicle Specs
- Fuel Specs
- Engine Oil Specs
- Transmission Oil Specs
- Coolant Specs
- Serial Number Location
- Diesel Engine Contents
- General Specs
- Lube System Operation
- Fuel System Operation
- Diagnosing Engine Malfunctions
- Fuel System Diagnosis
- Fuel Injection Nozzle Diagnosis
- Injection Pump / Air Intake Diagnosis
- Valve Adjustments
- Engine Compression Testing
- Oil Pressure Test / Turbo Boost Test
- Cooling System & Radiator Cap Pressure Test
- Engine Removal
- Engine Disassembly / Assembly
- Engine Valve Recess Check
- Engine Valve Seat Repair
- Cylinder Head Installation
- Cylinder Liner Height
- Piston / Liner Measurement
- Connecting Rod Bearing Measurement
- Cylinder Block Flatness
- Cylinder Liner Installation
- Connecting Rod Bearing Installation
- Crankshaft Pulley Installation
- Crankshaft End Play Check
- Flywheel & Ring Gear
- Crankshaft Rear Oil Seal
- Main Bearing Inspection
- Crankshaft Inspection
- Crankshaft Grinding Guidelines
- Piston Cooling Orifices
- Main Bearing Installation
- Hydraulic Pump Drive Shaft Installation
- Camshaft and Timing Gear
- Idler Gear Bushing and Shaft
- Front Oil Seal Installation
- Oil Pressure Regulating Valve
- Engine Oil Pump Inspection
- Oil Pan Installation
- Thermostat Removal / Testing
- Water Pump Repair
- Turbo Diagnosis
- Turbo Break-In
- Fuel Pump Testing
- Fuel Injection Pump Timing
- Nozzle Removal
- Nozzle Tests
- Altitude Compensation Guide
- Electrical Contents
- Electrical Specs
- Theory / Wire Color Info
- Electronic Instrument Panel Module Operation
- Troubleshooting Chart
- EIM Functions
- Wiring Harness
- Power Circuit Operation
- Power Circuit Diagnosis
- Cranking Circuit Operation
- Cranking Circuit Diagnosis
- Charging Circuit, Voltmeter, Hourmeter
- Schematic of Charging Circuit
- Diagnosis of Charging Circuit
- Tachometer Circuit Diagnosis
- Fuel Shutoff Solenoid Circuit Operation
- Fuel Shutoff Diagnosis
- Glow Plug / Light Operation
- Glow Plug & Light Diagnosis
- Manifold Heater Diagnosis
- Hydraulic Charge Pressure / Engine Oil Pressure Lights
- Hydraulic Charge Pressure Light Circuit Diagnosis
- Engine Coolant Temperature Light / Hydraulic Oil Temperature Light
- Engine Coolant Temperature Light Diagnosis
- Hydraulic Oil Temperature Light Diagnosis
- Hydraulic Oil Filter Light / Air Filter Light / Fuel Level Light
- Hydraulic Oil Filter Light Diagnosis
- Air Filter Light Diagnosis
- Fuel Level Display Diagnosis
- Hydraulic Boom / Bucket Lockout Operation
- Hydraulic Boom / Bucket Lockout Diagnosis
- Road / Work Light Operation
- Road / Work Light Diagnosis
- Regulated Amp / Volt Test
- Starter Solenoid Test
- Fuel Sender / Backup Alarm Switches
- Electrical Switch Tests
- Electrical Relay / Solenoid Tests
- EIM Panel Module Test
- Ground Circuit Test
- Blown Fuse Symptoms
- Starter Repair
- Voltage Regulator Replacement
- Alternator Test
- Gear Power Train
- Specs
- Theory of Operation
- Component Location
- Troubleshooting Chart
- Diagnosis
- Gearbox Repair
- Axle Assembly
- Hydrostatic Power Train
- Specs
- Theory of Operation
- Component Location – Main Pump
- Component Location – Pump Backplates
- Component Location – Hydraulic Motor
- Troubleshooting Chart
- Diagnostics
- Hydrostatic Case Drain Flow Test
- Hydrostatic Pump Case Drain Flow Test
- Hydrostatic Pump & Motor Case Drain Pressure Test
- Hydrostatic Pump High Pressure Relief Test
- Hydrostatic Pump Removal
- Hydrostatic Pump Disassembly
- Rotating Assembly Installation
- 2-Speed Cylinder and Linkage
- Hydrostatic Motor Removal
- Start-Up Procedure After Replacement
- Steering
- Specs
- Component Location
- Theory of Operation
- Troubleshooting Chart
- Diagnostics
- Tests and Adjustments
- Centering Mechanism
- Auxiliary Handle
- Brakes
- Specs
- Theory of Operation
- Component Location
- Diagnosis
- Troubleshooting Chart
- Tests and Adjustments
- Hydraulics
- Specs
- Theory
- Component Location – Hydraulic Cylinders
- Miscellaneous
- Control Valve
- Hydraulic Pump
- Bucket Cylinder
- Lift Cylinder
- Troubleshooting Chart
- Diagnostics
- Tests and Adjustments
- System Relief Valve Pressure Test
- Hydraulic Pump Removal
- Hydraulic Pump Installation
- Control Valve R&R
- Lift Arm Cylinder Removal
- Bucket Cylinder Removal / Repair
- Backhoe
- Specs
- Theory
- Boom / Dipperstick
- Stabilizer
- Troubleshooting Chart
- Diagnostics
- Tests and Adjustments – Circuit Relief
- Main Relief Valve Pressure Test
- Swing Crossover Valve Pressure Test
- Flow Restrictors
- Anti-Cavitation Check Valves
- Boom Crossover Relief
- Boom, Bucket, Dipperstick Cylinders
- Miscellaneous
- Specs
- Cab and Boom Tilting Procedure
- Boom Lock – Parts Location
- Boom Lock – Theory of Operation
- Boom Lock – Troubleshooting
- Boom Lock – Check
- Quick-Tach Attachment Mounting System
- Jacking and Cribbing
- Index
