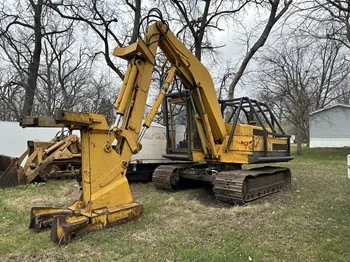

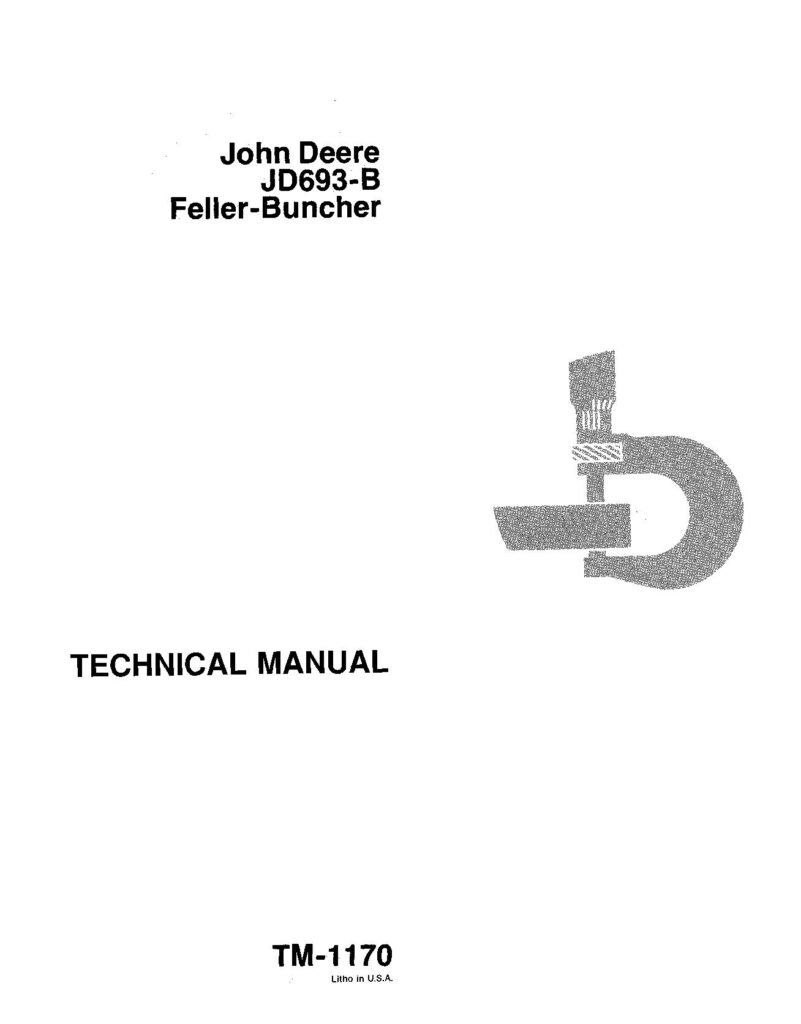

John Deere JD693-B Feller Bunchers Technical Manual (TM1170)
- Manual Included:
- Technical Manual: 763 Pages
- Specifications:
- Brand: John Deere
- Model: 693B
- Type: Feller Buncher
- Manuals: Technical Manual
- Publication Numbers: TM1170
- Language: English
- Format: PDF
This Table of Contents is for a Service/Repair Manual for a tracked machine—most likely a compact track loader, multi-terrain loader, or mini-excavator (given the presence of “Tracks,” “Backhoe and Excavator,” and “Shear” sections).
It is structured quite differently from the agricultural tractor manual you shared earlier. Here is a structured breakdown:
1. Introduction
- General manual overview and usage instructions
2. General Information
- General Specifications (machine dimensions, capacities, weights)
- Predelivery, Delivery, and After-Sale Services (PDI checklists, service intervals)
- Lubrication (oil types, grease points, capacities)
3. Tracks
- Track Systems (removal, installation, tensioning, alignment)
- Specifications and Special Tools (track torque specs, unique service tools)
4. Axles and Suspension Systems
- Drive Axle Housing and Support (final drive mounting, axle components)
- Hydraulic System (for axle/suspension functions, if applicable)
- Specifications and Special Tools
5. Engine (highly detailed section)
- Removal and Installation
- Crankshaft and Main Bearings
- Camshaft and Valve Actuating Means
- Connecting Rods and Pistons
- Cylinder Block
- Oiling System
- Ventilating System
- Cylinder Head and Valves
- Exhaust Manifold
- Fuel Injection System
- Intake Manifold
- Turbocharger
- Water Pump
- Thermostats, Housings, and Water Piping
- Oil Cooler
- Fuel Filter
- Fuel Transfer Pump
- Starting Motor
- Flywheel, Housing and Fastenings (note typo: “Fasteningsg”)
- Specifications and Special Tools (torque values, clearances, diagnostic tools)
6. Engine Auxiliary Systems
- Cold Weather Starting Aids (block heaters, ether injection)
- Cooling Systems (radiator, fan, hoses)
- Speed Controls (throttle linkage, electronic governing)
- Intake System (air filters, pre-cleaners, ducting)
- External Exhaust Systems (muffler, pipes, spark arrestors)
- Mounting Frame (engine mounts and isolation)
- External Fuel Supply Systems (tanks, lines, primers)
- Specifications and Special Tools
7. Electrical Systems
- Batteries, Support and Cables
- Alternator, Regulator, and Charging System Wiring
- Lighting System (headlights, work lights, beacons)
- Wiring Harness and Switches
- System Controls (key switch, panel, relays)
- Instruments and Indicators (gauges, warning lights, displays)
- Specifications and Special Tools
- (Note: “Special Toosl” is a typo for “Special Tools”)
8. Frame, Chassis, or Supporting Structure
- Frame Installation (mainframe mounting)
- Frame Bottom Guards (belly pans, underbody protection)
- Chassis Weights (counterweights and ballast)
9. Operator’s Station
- Operator Enclosure (ROPS/FOPS cab or canopy)
- Heating and Air Conditioning (HVAC controls, compressor, evaporator)
- Specifications and Special Tools
10. Sheet Metal and Styling
- Hood or Engine Enclosure
- Miscellaneous Shields (heat shields, debris guards)
- Grille and Grille Housing
- Fenders
11. Safety, Convenience and Miscellaneous
- Fire Extinguisher (mounting and inspection)
12. Backhoe and Excavator (attachment section)
- Controls Linkage (pilot valves, joystick cables)
- Frames (boom, arm, and bucket structures)
- Hydraulic System (cylinders, hoses, swivels)
- Specifications and Special Tools
13. Shear (attachment section)
- Blades and Cutting Elements
- Tongue and Forks
- Controls Linkage
- Frame
- Hydraulic System
- Specifications and Special Tools
14. Swing, Rotation or Pivoting System (for excavator-style upperstructure)
- Mechanical Drive Elements (slew ring, pinion, swing motor)
- Hydraulic System (swing motor and brake circuits)
Specifications and Special Tools
15. System Testing (diagnostic section)
- General Information (test procedures, safety)
- Engine (compression, fuel pressure, performance tests)
- Electrical System (voltage drop, parasitic draw, sensor checks)
- Power Train (track drive pressure, speed tests)
- Hydraulic System (flow, pressure, leakage tests)
- Miscellaneous Components
- Heating and Air Conditioning (temperature differential, refrigerant pressures)
- Specifications and Special Tools
16. Index
- Alphabetical reference for finding topics quickly
