Hitachi Zaxis 60USB-3 Hydraulic Excavator Factory Manuals
- Hitachi ZX60USB-3, ZX60USB-3F Information About:

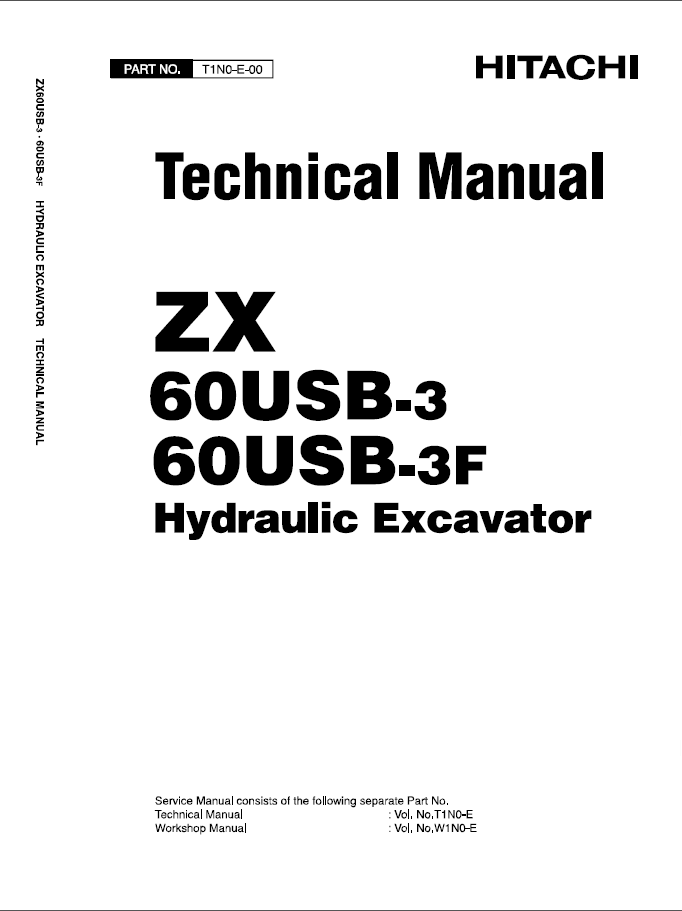

- Technical Manual : Vol. No.T1N0-EN
- Workshop Manual : Vol. No.W1N0-EN
- Engine Manual : Vol. No.KM-3TNV-E
- Operators Manual (ZX60USB-3)
- Electrical and Hydraulic Diagrams
- Parts Catalog Manual
Example brochure: hitachi ZX60USB-3_specs
Engine:
* Certified to EPA interim Tier-4 emissions
* Engine coolant to –34 deg. F (–37 deg. C)
* Engine preheater
* Fan guard
* Fuel/water separator
* Full-flow oil filter
* Isolation mounted
* Key start switch with an electric fuel shutoff
* Single dry-type air filter
* Under-hood muffler
Hydraulic System
* Auxiliary function foot control
* Auxiliary hydraulic lines with quick-couplers
to end of the boom.
Hitachi Zaxis 60USB-3 Hydraulic Excavator Factory Manuals
* Auxiliary return-flow selector valve
* Axial-piston swing motor
* Boom-swing foot control
* Excavator-to-backhoe control pattern
change valve
* Closed-center load sensing with one
variable-displacement pump and one
fixed-gear pump
* Hydraulic pilot-operated controls for boom,
arm, bucket, swing, boom swing, blade,
travel, and auxiliary functions
* Wet-disc swing brake
Undercarriage
* Planetary final drive
* Propel motor shield
* Rubber track, 16 in. (400 mm)
* Two-speed axial-piston propel motors
Steel track, 16 in. (400 mm) with triple
semi-grousers
Rubber crawler pad, 16 in. (400 mm)
