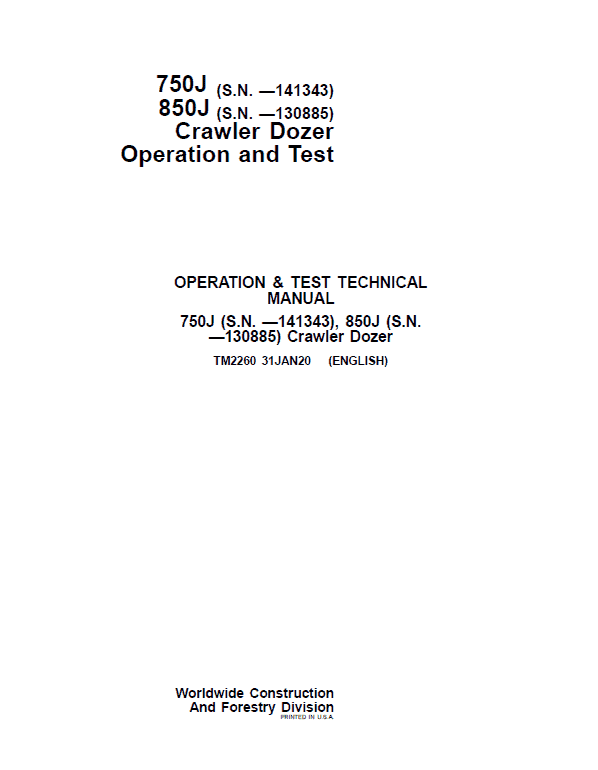

John Deere 750j, 850j Crawler Dozer Operation and Test Manual
- Manual Included:
- Operations and Test Manual: 764 Pages (TM2260)
- Specifications:
- Brand: John Deere
- Model: 750J, 850J
- Serial Number:
750J (S.N. —141343)
850J (S.N. —130885) - Type: Crawler Dozer
- Manuals: Repair Technical Manual and Operation and Test Manual
- Publication Numbers: TM2260
- Language: English
- Format: PDF
Other Manual: Repair Technical Manual: 483 Pages (TM2261)
TM2260 Operation & Test Manual
| Section | Group ID | Component / Focus | Unique Descriptor |
|---|---|---|---|
| 9000—General Information | 01 | Safety | Precautions & hazard prevention |
| 9001—Diagnostic Trouble Codes | 10 | CMU Codes | CAN monitor unit fault codes |
| 9001—Diagnostic Trouble Codes | 20 | ECU Codes — 750J | Engine control unit faults (750J model) |
| 9001—Diagnostic Trouble Codes | 21 | ECU Codes — 850J | Engine control unit faults (850J model) |
| 9001—Diagnostic Trouble Codes | 30 | TCU Codes | Transmission control unit faults |
| 9001—Diagnostic Trouble Codes | 40 | EHC Codes | Electro-hydraulic controller errors |
| 9001—Diagnostic Trouble Codes | 50 | BCJ Codes | Blade control joystick diagnostics |
| 9005—Operational Checkout | 10 | Operational Checkout | Complete system verification procedure |
| 9010—Engine | 05 | Theory of Operation | Combustion & power principles |
| 9010—Engine | 15 | Diagnostic Information | Engine fault finding data |
| 9010—Engine | 25 | Tests | Engine performance measurements |
| 9015—Electrical System | 05 | System Information | Circuit overview & layout |
| 9015—Electrical System | 10 | System Diagrams | Wiring schematics & connectors |
| 9015—Electrical System | 15 | Sub-System Diagnostics | Component-level troubleshooting |
| 9015—Electrical System | 20 | References | Cross-reference tables & pinouts |
| 9025—Hydraulics | 05 | Theory | Fluid power & flow principles |
| 9025—Hydraulics | 15 | Diagnostic Information | Pump & valve fault analysis |
| 9025—Hydraulics | 25 | Tests | Pressure & flow rate checks |
| 9026—Hydrostatic System | 05 | Theory of Operation | Variable displacement drive principles |
| 9026—Hydrostatic System | 15 | Diagnostic Information | Hydrostatic circuit faults |
| 9026—Hydrostatic System | 25 | Tests | Hydrostatic performance verification |
| 9031—Heating & Air Conditioning | 05 | Theory of Operation | Refrigeration & heat exchange cycle |
| 9031—Heating & Air Conditioning | 15 | Diagnostic Information | Climate control fault analysis |
| 9031—Heating & Air Conditioning | 25 | Tests | Temperature & pressure checks |
John Deere 750j, 850j TM2260
