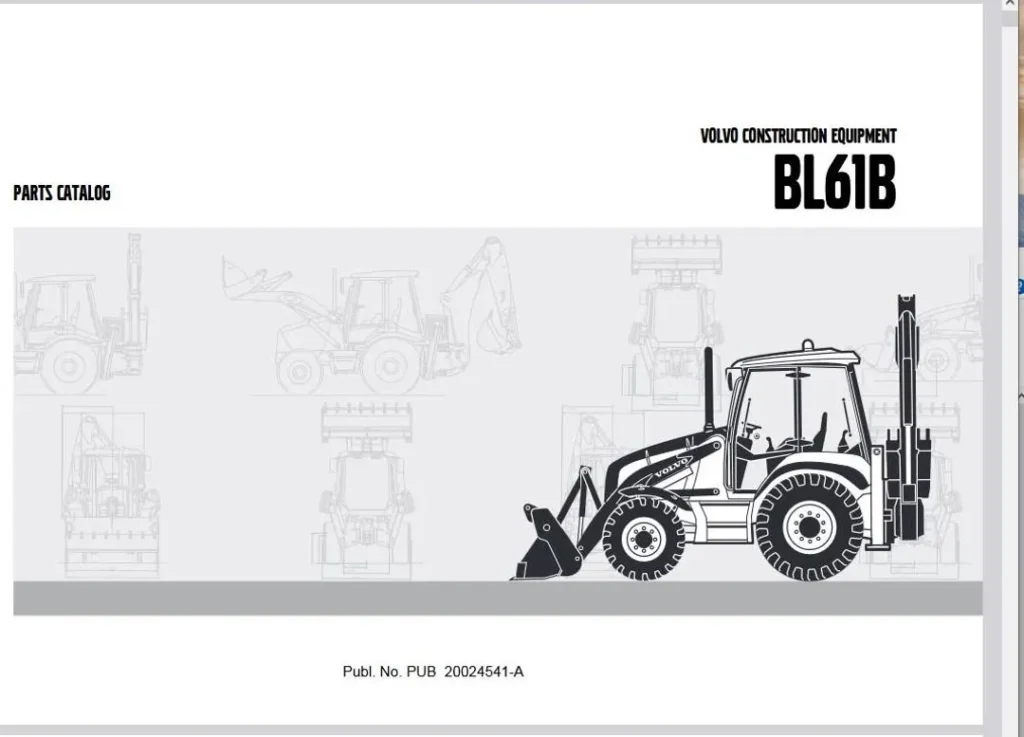

Volvo Bl61b Backhoe Loader Service Catalogue Manual
- Manual Included:
- Repair Service Manual: 1693 Pages
- Specifications:
- Brand: Volvo
- Model: BL61B
- Type: Backhoe Loader
- Manuals: Repair Service Manual
- Publication Numbers: Ref. No 513324 9178
- Language: English
- Format: PDF
Covers the following models:
Volvo BL70 Backhoe Loader— SN: 11489 and up
Service Parts Catalogue Manual Covers:
01 General
02 Engine with Mounting and Equipment
03 Elec. System, Warning System, Information System, Instruments
04 Power Transmission
05 Brake
06 Steering
07 Frame and Wheel
08 Machinery House, Cab, Exterior Trim Parts Anywhere
09 Working Hydraulics, Servo Hydraulics
10 Mechanical Equipment, Attachment
11 Unit, Load Handling
12 Unit, Digging
Volvo Bl61b Backhoe Loader Service Catalogue Manual
Engine:
Volvo D5D (4.8 l) turbocharged diesel
83 SAE Net hp (62kW) / Gross 86 hp (64kW)- BL61B,
91 SAE Net hp (68kW) / Gross 94 hp (70kW) – BL71B,
meets EPA Tier 3 / Stage 3A compliance requirements,
Engine fan guard,
Ground line fuel fill with 150 liter capacity
Front grill,
Tilting cooler,
Flip-open, rear-tilting, one-piece engine hood for ease of service
Electrical System:
Battery, 690 CCA
Alternator 95 Amp.
Hydraulic System:
“Flow Sharing” System
Hydraulic oil cooler
Constant flow on loader MP hydraulics (BL71B)
Loader pilot/mechanical controls:
The BL71B showcases a single-handed, multifunctional pilot-controlled, loader joystick. Joystick with added functions consists of maker instructions, car kick-down and also transmission declutch. The BL61B showcases a mechanically-controlled bar. A 2nd, the different bar is utilized to regulate a multi-purpose container (if mounted). Both bars are developed for one-hand adjustment.
Volvo is referred to as the marketplace leader comfortably. The upgraded taxi is currently far better compared to ever before with adequate quantities of individual storage areas. The ergonomic format, controls as well as tools place you in command. Throughout exposure has actually been improved boosting safety and security as well as efficiency.
