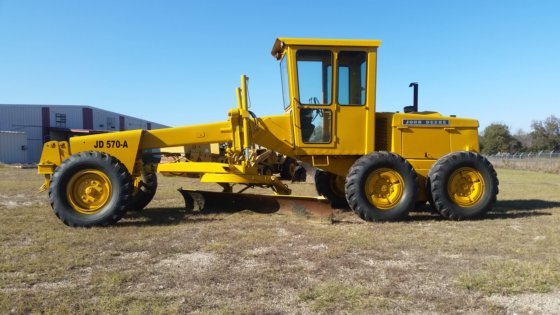

John Deere 570, 570A Motor Grader Repair Technical Manual (TM1001)
- Manual Included:
- Repair Technical Manual: 526 Pages
- Specifications:
- Brand: John Deere
- Model: 570, 570A
- Type: Motor Grader
- Manuals: Repair Technical Manual
- Publication Numbers: TM1001
- Language: English
- Format: PDF
Section Summary
| Category | Covered Topics |
|---|---|
| Foreword | Manual introduction |
| General | Specifications, delivery services, tune-up, lubrication, separation |
| Engine | Diagnostics, basic components, lubrication, speed control, cooling |
| Fuel System | Diagnostics, tank, filters, air intake, injection pumps, nozzles |
| Electrical | Wiring diagrams, charging, starting, misc components |
| Power Train | Clutch, transfer drive, transmission, differential, final drive |
| Steering and Brakes | Power steering valve, brake valve, cylinders, parking brake |
| Hydraulic | Components, testing, pumps, valves, cylinders, circle drive |
| Miscellaneous | Circle gearbox, drawbar, moldboard, saddle, frame, axles |
Table of Contents – Service Manual
Foreword
- About This Manual
General Information
- Specifications
- Predelivery, Delivery, and After-Sale Services
- Tune-up and Adjustment Procedures
- Lubrication Guidelines
- Separation Procedures
- Specifications and Special Tools
Engine System
- Diagnosing Engine Malfunctions
- Basic Engine Components
- Engine Lubrication
- Speed Control Linkage
- Engine Cooling System
Fuel System
- Diagnosing Malfunctions
- Fuel Tank, Filters, and Transfer Pump
- Air Intake System
- Fuel Injection Pumps
- Fuel Injection Nozzles
- Specifications and Special Tools
Electrical System
- Description and Wiring Diagrams
- Charging System
- Starting Motor
- Miscellaneous Electrical Components
Power Train
- Engine Disconnect Clutch
- Transfer Drive
- Power Shift Transmission
- Differential, Differential Control, and Valve
- Final Drive System
- Specifications and Special Tools
Power Steering and Brakes
- Power Steering Valve
- Brake Valve
- Brake Cylinders and Disks
- Parking Brake
- Components and Tests
- System Testing (Analyzer)
- Filters, Valves, and Accumulator
- Main Hydraulic Pump
- Function Control Valves
- Hydraulic Cylinders
- Circle Drive Hydraulic Motor
- Saddle Valve and Retaining Pins
- Specifications and Special Tools
Miscellaneous Components
- Circle Drive Gearbox
- Drawbar, Circle, and Moldboard
- Saddle, Main Frame, Front Axle, Scarifier, and Engine Frame
- Specifications and Special Tools.
